Proven 740B40PP005D1 Replacement Filter Cartridge | 3M 740B Compatible Filter

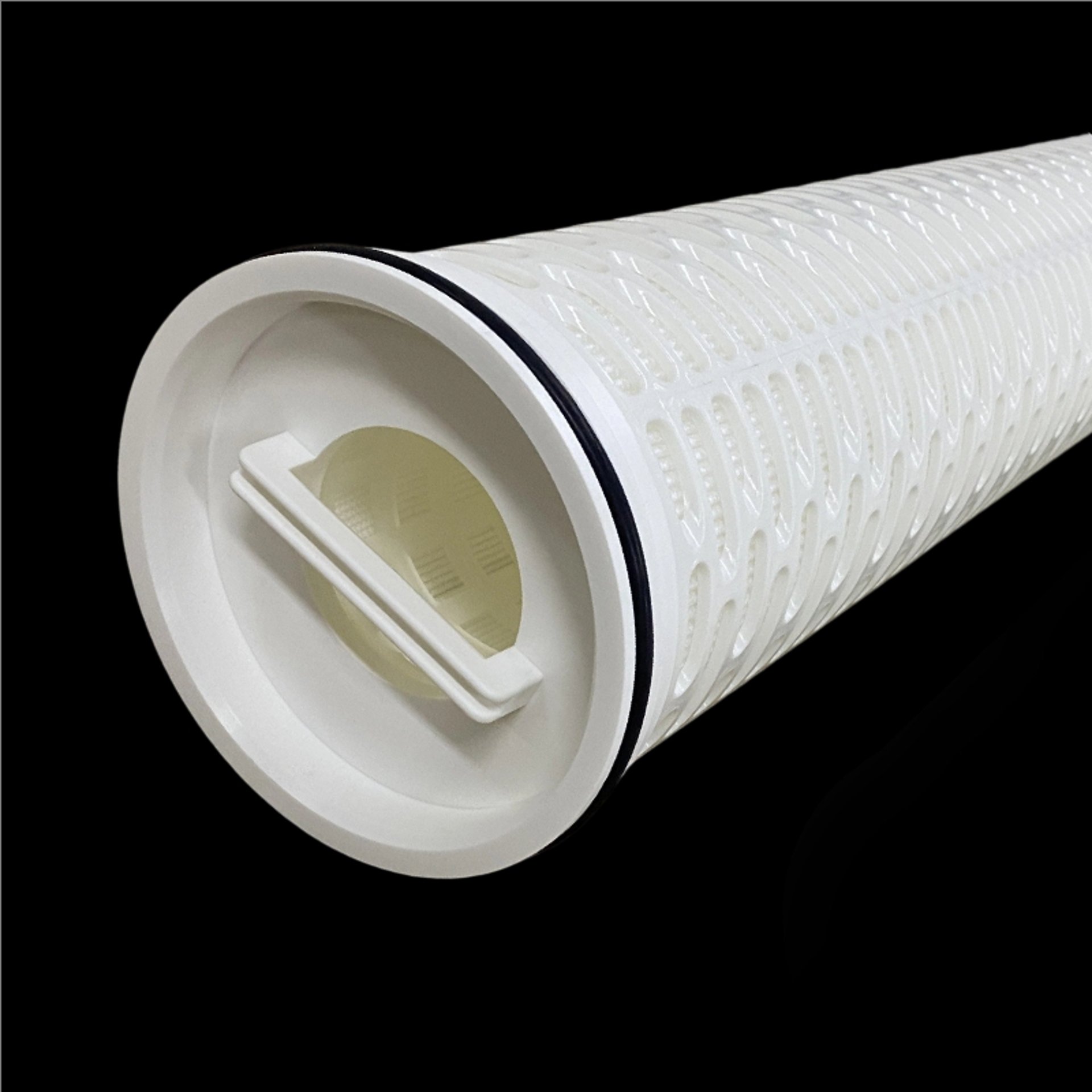

MemKway 740B40PP005D1 replacement filter cartridge is designed as a compatible alternative for selected 3M 740B Series industrial filtration systems. Featuring 5 μm polypropylene pleated media and a 40-inch large-format configuration, it is intended for particulate removal in industrial water and process filtration applications.
The cartridge is suitable for process water, cooling water, chemical processing, oil & gas and general industrial filtration duties where a 5 μm 740B-format cartridge is required. Final compatibility should be confirmed using the complete OEM part number, cartridge dimensions and seal configuration.
Item | Details |
MemKway Model | MK-740B40PP005N |
Equivalent 3M Model | 740B40PP005D1 |
Stock Number (Old) | 70-0201-2848-7 / 70020128487 |
Product ID (New) | 7100063850 |
1. Core Specifications
Feature | Details |
Brand | MemKway |
Micron Rating | 5 Micron (Absolute) |
Length (Nominal) | 40 Inch (1000 mm) |
Outer Diameter | 6.5 Inch (165 mm) |
Internal Diameter | 1.6 Inch (40 mm) |
Flow Direction | Outside-to-Inside |
2. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Glass Fiber Reinforced Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | Nitrile (NBR) Standard / Viton (FKM), Silicone, EPDM Optional |
3. 3M 740B40PP005D1 Compatible Replacement Cross Reference
| Original 3M Model | MemKway Replacement | Rating | Length | Series |
|---|---|---|---|---|
| 740B40PP005D1 | MK-740B40PP005N | 5 μm | 40 in | 740B |
| 740B40PP010D1 | MK-740B40PP010N | 10 μm | 40 in | 740B |
| 740B40PP040B1 | MK-740B40PP040V | 40 μm | 40 in | 740B |
| 740B40PP070D1 | MK-740B40PP070N | 70 μm | 40 in | 740B |
MemKway 740B Series replacement cartridges are designed for selected 3M industrial filtration systems. Exact compatibility should be confirmed using the complete OEM part number, cartridge dimensions and seal configuration before ordering.
4. Operating Conditions
Parameter | Maximum / Recommended Value |
Max. Operating Temperature | 71°C (160°F) |
Max. Forward Diff. Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Rec. Change-out Diff. Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Max. Design Flow Rate | Up to 18 m³/h (80 GPM) per element |
5. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Flow Rate (GPM) | Flow Rate (m³/h ) | Pressure Drop (psid) | Pressure Drop (mbar) |
20 | 4.54 | 0.2 | 13.79 |
40 | 9.08 | 0.4 | 27.58 |
60 | 13.6 | 0.5 | 34.47 |
80 | 18.2 | 0.7 | 48.26 |
6. Key Features & Benefits
- Compatible Installation: Designed for selected 3M 740B filtration systems.
- 5 μm Filtration: Polypropylene pleated media for particulate removal.
- 40-Inch Large-Format Design: Suitable for industrial high-flow filtration duties.
- Stable Flow Performance: Pleated construction supports efficient filtration and contaminant loading.
- Cross-Reference Support: Final model selection based on OEM part number and operating requirements.
7. Typical Applications of 3M 740B40PP005D1 Replacement
- Oil & Gas: Produced water, amine loops, glycol filtration.
- Water Treatment: Pre-filtration for Reverse Osmosis (RO), Desalination, Municipal Water.
- Chemical/Petrochemical: Acids, bases, and process water purification.
- Industrial: Boiler condensate, cooling water, and parts washing.
8. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
9. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality replacement filters. Any reference to original part numbers (740B40PP005D1, 70020128487, 7100063850) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
Q1: What is the filtration rating of 740B40PP005D1 replacement filter?
A:MemKway 740B40PP005D1 replacement filter uses a 5 μm polypropylene filtration configuration for particulate removal in industrial liquid filtration applications.
A: Yes. It is designed as a compatible replacement for selected 3M 740B Series applications. Final fit should be confirmed using the complete OEM part number, dimensions and seal configuration.
A: This model is suitable for selected industrial water, process water, cooling water, chemical processing and oil & gas filtration duties where a 5 μm 740B-format cartridge is appropriate.
A: Choosing MemKway MK-740B40PP005N brings the same OEM fit and filtration performance, with more competitive pricing, shorter lead time and lower long-term maintenance costs. It is a perfect cost-saving interchangeable option for industrial filtration projects.
