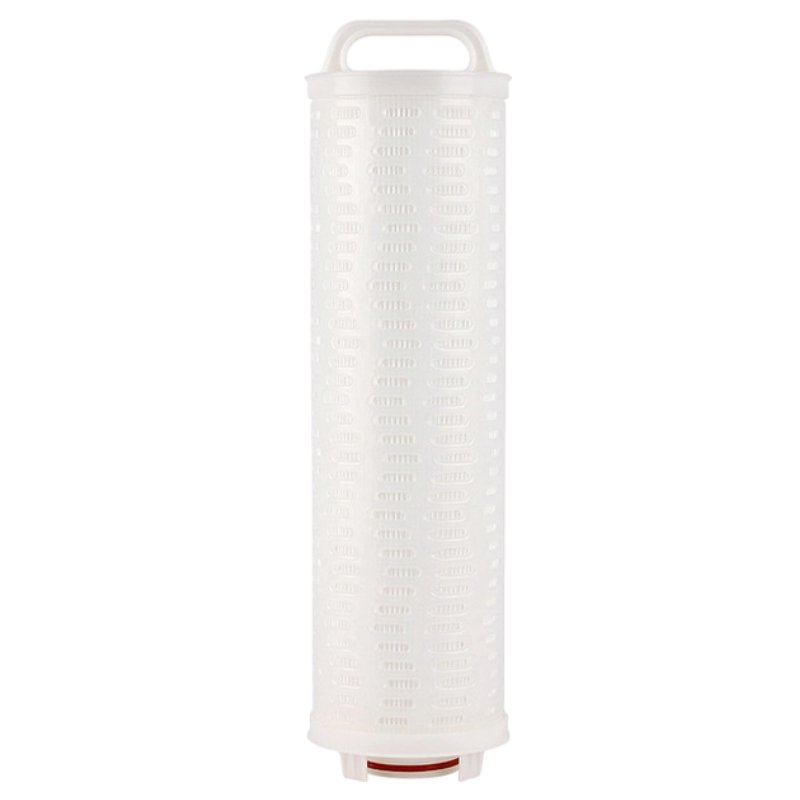

HF40PP005B01 Replacement Filter Cartridge – 5 μm Viton 3M High Flow Compatible
MemKway HF40PP005B01 replacement filter cartridge is designed as a compatible alternative for selected 3M High Flow filtration systems. It features 5 μm pleated polypropylene media, a 40-inch large-format configuration and Viton O-rings for industrial liquid filtration.
Compared with EPDM-sealed HF Series variants, the B01 configuration is intended for applications requiring Viton seal compatibility. Final suitability should be confirmed by OEM part number, dimensions, process fluid and operating conditions.
1. Core Specifications
| Parameter | Specification |
|---|---|
| Brand | MemKway |
| MemKway Model | MK-H40PP005V |
| OEM Reference | 3M HF40PP005B01 |
| Compatibility | Designed for selected 3M HF Series 40-inch High Flow filter housings |
| Filtration Rating | 5 μm Absolute |
| Cartridge Length | 40 in (1016 mm) |
| Outer Diameter (OD) | 6.5 in (165 mm) |
| Internal Diameter (ID) | 3 in (76.2 mm) |
| Flow Direction | Outside to Inside |
2. HF40PP005B01 Cross Reference & Related 3M High Flow Models
| 3M Model | MemKway Replacement | Rating | Seal | Length |
|---|---|---|---|---|
| HF40PP005A01 | MK-H40PP005S | 5 μm | Silicone | 40 in |
| HF40PP005B01 | MK-H40PP005V | 5 μm | Viton | 40 in |
| HF40PP010A01 | MK-H40PP010S | 10 μm | Silicone | 40 in |
| HF40PP040A01 | MK-H40PP040S | 40 μm | Silicone | 40 in |
3. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | Viton Standard /Nitrile, EPDM and Silicone Optional |
4. Operating Conditions
Parameter | Maximum / Recommended Value |
MaximumOperating Temperature | 71°C (160°F) |
Maximum Forward Differential Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Recommended Change-out Differential Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Maximum Water Flow Rate | 80 m³/h (350 GPM) per element |
5. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Removal rating (μm) | Element pressure drop (mbar/m³/h ) | Element pressure drop (psi/100 gpm) | ||
40″ | 60″ | 40″ | 60″ | |
1 | 2.47 | 1.73 | 0.80 | 0.56 |
2 | 2.29 | 1.60 | 0.74 | 0.52 |
5 | 1.23 | 0.86 | 0.40 | 0.28 |
10 | 0.62 | 0.43 | 0.20 | 0.14 |
15 | 0.44 | 0.31 | 0.14 | 0.10 |
25 | 0.31 | 0.23 | 0.11 | 0.08 |
40 | 0.30 | 0.22 | 0.10 | 0.07 |
70 | 0.29 | 0.21 | 0.09 | 0.06 |
6. Key Features & Benefits
- Compatible Installation: Guaranteed to fit perfectly into existing high-flow filter housings without any modifications.
- Compound radial pleat design:The filter offers high loading capacity, reproducible effluent quality throughout its service life, and broad chemical compatibility.
- Cost-Efficient Excellence: The HF40PP005B01 replacement filter achieves the same (or better) filtration efficiency as the original ones while reducing your overall operational and maintenance costs.
- Simplified Maintenance: Featuring an integrated handle design, MemKway HF40PP005B01 replacement filters allow for rapid installation and mechanical removal, minimizing system downtime.
- Suitable for diverse industrial applications: Micron grades range from 1 μm to 70 μm absolute filtration precision. It offers excellent particulate removal and surface filtration for a variety of industrial applications..
7. Typical Applications
- Oil & Gas: Produced water, amine loops, glycol filtration.
- Water Treatment: Pre-filtration for Reverse Osmosis (RO), Desalination, Municipal Water.
- Chemical Processing: Selected compatible process fluids and process water applications.
- Industrial: Boiler condensate, cooling water, and parts washing.
8. HF40PP005A01 vs HF40PP005B01 – What Is the Difference?
| Feature | HF40PP005A01 | HF40PP005B01 |
|---|---|---|
| Filtration Rating | 5 μm | 5 μm |
| Media | Polypropylene | Polypropylene |
| Length | 40 in | 40 in |
| Seal Configuration | Silicone | Viton |
| Typical Selection Basis | General water-service configuration | Applications requiring Viton seal compatibility |
9. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
10. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality equivalent filters. Any reference to original part numbers (HF40PP005B01) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
Q1: What is the filtration rating of HF40PP005B01 replacement filter?
A:The HF40PP005B01 replacement filter configuration uses 5 μm absolute pleated polypropylene media for particulate removal in industrial liquid filtration.
A: Viton is typically selected where the process fluid or operating conditions require greater chemical resistance than standard water-service elastomers. Final selection should be confirmed against the actual fluid chemistry and temperature.
A: Yes. It is designed as a compatible replacement for selected 3M High Flow applications. Final fit should be confirmed using the complete OEM part number, dimensions and seal configuration.
A: Choosing MemKway MK-H40PP005V brings the same OEM fit and filtration performance, with more competitive pricing, shorter lead time and lower long-term maintenance costs. It is a perfect cost-saving interchangeable option for industrial filtration projects.
