Introduction

H&V KC 1051 Grade GF media is the core material we adopt for MemKway’s Pall HFU replacement filter, specially designed to fix common hydraulic filtration pain points caused by inferior local glass fiber media. Industrial high-flow filtration systems require dual core capabilities: stable purification of process fluids and reliable contamination control for hydraulic oil. The Pall HFU high-flow filter series is widely adopted in power generation, petrochemical, and heavy manufacturing industries for large-volume fluid filtration. Among its product lineup, GF-grade glass fiber filters stand out for their consistent precision, outstanding temperature resistance, and extended service life — key attributes that prevent unplanned equipment downtime and hydraulic system malfunctions.

Nevertheless, most end-users face persistent quality issues with generic aftermarket glass fiber filter elements, especially in strict hydraulic oil filtration applications. Conventional locally manufactured alternatives frequently suffer from unstable particle retention, erratic pressure drop, and harmful secondary contamination, failing to meet industrial hydraulic standards. To fully resolve these long-standing customer pain points, MemKway exclusively uses imported Hollingsworth & Vose (H&V) KC 1051 Grade GF media for all HFU-series glass fiber replacement cartridges, delivering OEM-grade hydraulic filtration performance and long-term system stability.

Critical Pain Points of Conventional Local GF Filter Elements in Hydraulic Applications

Hydraulic oil filtration has far more stringent requirements than standard water filtration, demanding stable ISO 4406 oil cleanliness, controllable differential pressure, and zero fiber contamination. However, most domestically produced HFU glass fiber filters lack standardized production and performance verification, resulting in inherent defects that compromise fluid purity and equipment operation. The most prevalent industry issues are summarized as follows:

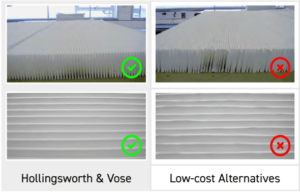

• Falsified and inconsistent media parameters: Most local GF media fails to meet its declared specifications for filtration precision, thickness, and structural uniformity. The gap between labeled and actual performance leads to completely unpredictable filtration results.
• Blind multi-layer stacking to compensate poor media quality: To offset the inferior performance of low-grade single-layer media, many manufacturers arbitrarily increase the number of filter layers. This makeshift approach distorts the standard dP vs flow rate curve, causing excessive differential pressure, restricted flow, and shortened filter service life.
• Lack of standardized testing and design validation: The majority of local filter factories skip professional multipass performance testing, differential pressure calibration, and design parameter verification. Unregulated production processes result in inconsistent batch quality and unreliable end products.
• Severe fiber migration and shedding degrading fluid purity: A fatal flaw of low-cost local GF media is persistent fiber shedding and downstream fiber migration. These loose fibers are counted as solid contaminants by PAMAS particle counters, directly downgrading hydraulic oil cleanliness levels and damaging precision hydraulic components.
• Mismatched precision and efficiency performance: Paradoxically, local 1.0 μm-rated HFU elements cannot deliver the stable final filtration effect achieved by genuine 4.5 μm Pall HFU filters. Despite their finer nominal rating, they fail to balance qualified filtration efficiency and acceptable pressure drop for long-term hydraulic operation.

Due to these critical flaws, ordinary local filter elements are only suitable for non-critical scenarios where downstream quality monitoring is not required. For high-standard hydraulic systems, lubrication circuits, and precision process filtration, these low-cost alternatives pose major operational risks, including accelerated component wear, reduced equipment accuracy, and unstable production quality.

Advantages of Pall HFU Replacement Filter with Original H&V GF Media

Genuine Pall HFU Ultipleat high-flow GF filters adopt premium gradient glass fiber media to enable efficient depth filtration. Compared with conventional polypropylene media, GF-grade media delivers superior temperature resistance, higher dirt holding capacity, and stable beta ratio efficiency, making it ideal for high-temperature process fluids, industrial lubricants, and precision hydraulic oil purification.

Even so, original Pall HFU GF filters come with high OEM costs and long lead times, driving industrial users to seek reliable, cost-effective, and fully interchangeable aftermarket alternatives.

MemKway’s Solution: Authentic Imported H&V KC 1051 Grade GF Media

To completely eliminate hydraulic filtration challenges and replicate genuine Pall HFU GF performance, MemKway equips all HFU replacement filters with authentic Hollingsworth & Vose KC 1051 Grade GF media — a professional hydraulic-grade glass fiber media with proven reliability in global industrial hydraulic and lubrication filtration systems.

KC 1051 GF features a gradient borosilicate micro-glass fiber structure bonded with thermoset oil-resistant acrylic resin. Specially optimized for mineral hydraulic oil, gear oil, turbine lubricant, and synthetic hydraulic fluid filtration, it perfectly addresses all the core drawbacks of low-grade local GF media:

• Stable and verified filtration precision: Achieves a consistent beta ratio β₅ ≥ 200 (99.5% filtration efficiency at 5μm), effectively capturing metal wear particles, oil sludge, and fine impurities to maintain stable ISO 4406 hydraulic oil cleanliness.
• Zero fiber migration and secondary contamination: The fully cured integrated resin bonding structure eliminates fiber shedding entirely, protecting servo valves, hydraulic pumps, and high-precision actuators from particle pollution.
• Excellent oil and high-temperature resistance: Supports continuous operation at up to 120°C, with outstanding hydrolysis and oil immersion stability, ensuring no deformation or performance degradation during long-cycle hydraulic system operation.
• Superior dirt holding capacity for extended service life: Boasting 60% higher contaminant holding capacity than ordinary local GF media, it significantly reduces filter replacement frequency and cuts hydraulic system maintenance costs.
• Stable pressure drop and high mechanical strength: The standardized media structure maintains a stable dP vs flow rate curve, withstanding a maximum burst pressure of 20 bar and adapting to complex hydraulic pressure fluctuations without damage or failure.

Core Benefits of MemKway HFU GF Replacement Filters

• Professional hydraulic system optimization: Tailored for industrial hydraulic and lubrication filtration, fundamentally solving common issues including unstable cleanliness, fiber contamination, and abnormal pressure drop caused by inferior filter media.
• 1:1 full interchangeability with original Pall HFU GF: Fully compatible with mainstream models such as HFU640GF, HFU660GF, and HFU620GF, requiring no equipment modification during replacement.
• Cost-effective OEM-grade alternative: Adopts authentic imported H&V media to restore original-level filtration performance without the brand premium, delivering excellent cost performance.
• Broad industrial applicability: Suitable for hydraulic stations, wind turbine gearbox lubrication systems, power plant lubrication circuits, petrochemical process fluids, and high-flow industrial water pretreatment.
• Complete quality traceability: Every batch of H&V media is equipped with official material certificates, and all finished filters undergo ISO 16889 multipass testing to ensure consistent and reliable performance.

Conclusion

Inferior aftermarket filter media brings persistent hidden risks to hydraulic system stability and industrial production safety. By utilizing authentic H&V KC 1051 Grade GF media, MemKway’s Pall HFU replacement filter fully resolve core hydraulic filtration pain points: mislabeled media parameters, fiber shedding, fluctuating differential pressure, and inadequate particle removal efficiency. Our filtration solutions maintain consistent ISO 4406 hydraulic oil cleanliness, cut operational & maintenance costs, and prolong the service lifespan of precision hydraulic components. If you need stable, high-efficiency, cost-saving HFU GF filter replacements for hydraulic and industrial fluid filtration, MemKway provides tailored filtration solutions for global manufacturing clients. Choosing genuine H&V KC 1051 Grade GF media is the decisive factor to manufacture high-performance Pall HFU replacement filter for critical hydraulic working conditions.

Looking for reliable Pall HFU GF equivalent filters with genuine H&V KC1051 GF media for your hydraulic systems? Contact MemKway team to get full material datasheets, performance test reports and customized filter quotations.
