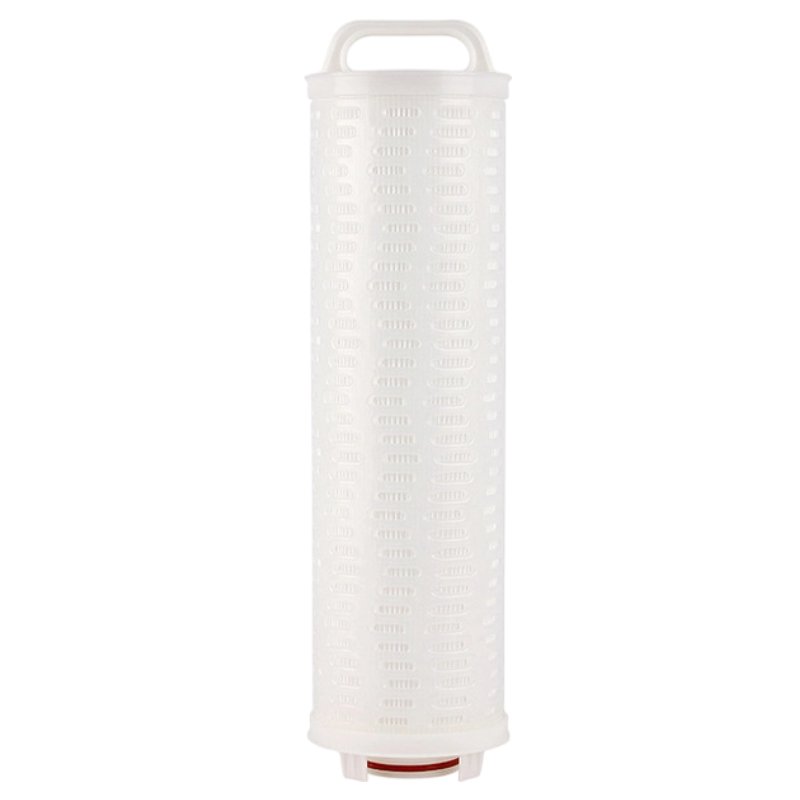

HF40PP001C01 Replacement Filter Cartridge – 1 μm EPDM 3M High Flow Compatible
MemKway HF40PP001C01 replacement filter cartridge is designed as a compatible alternative for selected 3M High Flow filtration systems. It features 1 μm absolute pleated polypropylene media, a 40-inch configuration and EPDM sealing for fine particulate removal in industrial liquid filtration.
Typical applications include RO pretreatment, desalination, process water and general industrial water treatment. Final compatibility should be confirmed by OEM part number, dimensions, seal configuration and process fluid.
1. Core Specifications
| Parameter | Specification |
|---|---|
| Brand | MemKway |
| MemKway Model | MK-H40PP001E |
| OEM Reference | 3M HF40PP001C01 |
| Filtration Rating | 1 μm Absolute |
| Cartridge Length | 40 in (1016 mm) |
| Outer Diameter | 6.5 in (165 mm) |
| Inner Diameter | 3 in (76.2 mm) |
| O-ring Material | EPDM |
| Flow Direction | Outside to Inside |
2. HF40PP001C01 Cross Reference & Related 3M High Flow Models
| 3M Model | MemKway Replacement | Rating | Seal | Length |
|---|---|---|---|---|
| HF40PP001A01 | MK-H40PP001S | 1 μm | Silicone | 40 in |
| HF40PP001C01 | MK-H40PP001E | 1 μm | EPDM | 40 in |
| HF40PP005A01 | MK-H40PP005S | 5 μm | Silicone | 40 in |
| HF60PP001A01 | MK-H60PP001S | 1 μm | Silicone | 60 in |
3. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | EPDM Standard /Nitrile, Silicone and Viton Optional |
4. Operating Conditions
Parameter | Maximum / Recommended Value |
MaximumOperating Temperature | 71°C (160°F) |
Maximum Forward Differential Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Recommended Change-out Differential Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Maximum Water Flow Rate | 80 m³/h (350 GPM) per element |
5. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Removal rating (μm) | Element pressure drop (mbar/m³/h ) | Element pressure drop (psi/100 gpm) | ||
40″ | 60″ | 40″ | 60″ | |
1 | 2.47 | 1.73 | 0.80 | 0.56 |
2 | 2.29 | 1.60 | 0.74 | 0.52 |
5 | 1.23 | 0.86 | 0.40 | 0.28 |
10 | 0.62 | 0.43 | 0.20 | 0.14 |
15 | 0.44 | 0.31 | 0.14 | 0.10 |
25 | 0.31 | 0.23 | 0.11 | 0.08 |
40 | 0.30 | 0.22 | 0.10 | 0.07 |
70 | 0.29 | 0.21 | 0.09 | 0.06 |
6. HF40PP001A01 vs HF40PP001C01 – What Is the Difference?
| Feature | HF40PP001A01 | HF40PP001C01 |
|---|---|---|
| Filtration Rating | 1 μm | 1 μm |
| Media | Polypropylene | Polypropylene |
| Length | 40 in | 40 in |
| Seal Configuration | Silicone | EPDM |
| Typical Selection Basis | Applications requiring Silicone seal compatibility | Applications requiring EPDM seal compatibility |
7. Key Features & Benefits
1 μm Absolute Filtration
Pleated polypropylene media for fine particulate removal in industrial liquid filtration.
40-Inch High Flow Configuration
Large-format cartridge design for selected 3M High Flow filtration systems.
EPDM Seal Configuration
Suitable for water and selected aqueous process-fluid applications where EPDM compatibility is required.
Pleated Polypropylene Media
Supports contaminant loading and stable flow performance.
Outside-to-Inside Flow Design
Supports efficient use of the filtration surface.
Cross-Reference Support
Model selection can be confirmed using OEM part number, dimensions, filtration rating and seal configuration.
8. Typical Applications
- Oil & Gas: Produced water, amine loops, glycol filtration.
- Water Treatment: Pre-filtration for Reverse Osmosis (RO), Desalination, Municipal Water.
- Chemical Processing: Selected compatible process fluids and process-water applications.
- Industrial: Boiler condensate, cooling water, and parts washing.
9. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
10. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality equivalent filters. Any reference to original part numbers (HF40PP001C01) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
A: The HF40PP001C01 replacement filter configuration uses 1 μm absolute pleated polypropylene media for fine particulate removal in industrial liquid filtration.
Q2:What is the difference between HF40PP001C01 and HF40PP001A01?
A: Both use 1 μm polypropylene media in a 40-inch HF Series format. The main difference is the seal configuration: HF40PP001C01 uses EPDM, while HF40PP001A01 uses a different seal configuration.
Q3: When should an EPDM-sealed HF Series cartridge be selected?
A: EPDM is commonly selected for water and many aqueous process-fluid applications. Final suitability should be confirmed against the actual fluid chemistry and operating temperature.
Q4: Is MemKway HF40PP001C01 equivalent filter designed for 3M High Flow systems?
A: Yes. It is designed as a compatible replacement for selected 3M High Flow applications. Final fit should be confirmed using the complete OEM part number, dimensions and seal configuration.
