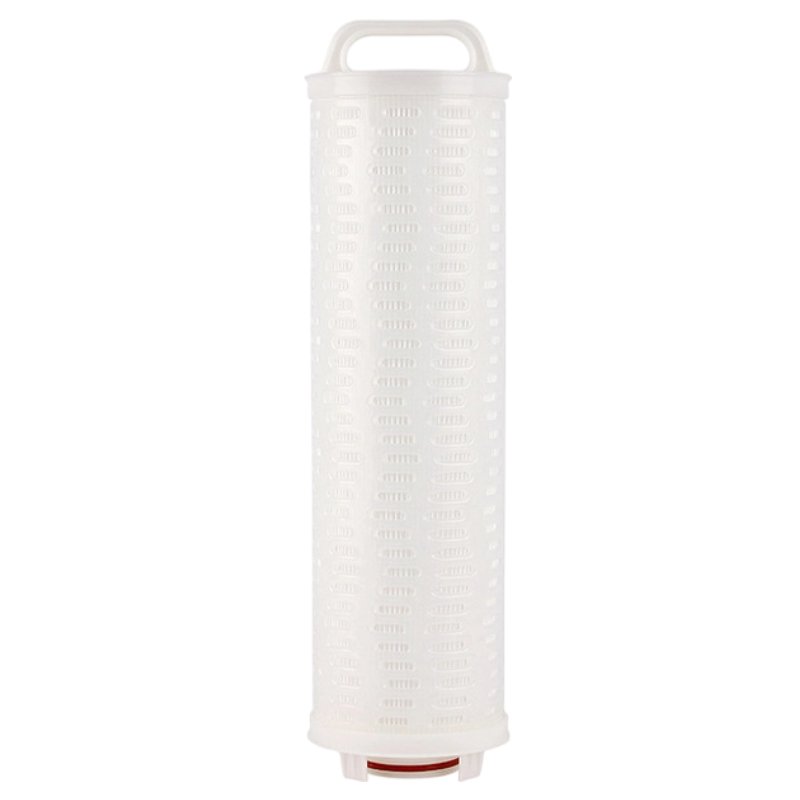

HF60PP001A01 Replacement 3M High Flow Filter | MemKway MK-H60PP010S
MemKway MK-H60PP001S is a high-performance HF60PP001A01 replacement filter cartridge designed as a direct alternative for the 3M HF60PP001A01 filter cartridge. Manufactured to match the original specifications, this 60-inch, 1-micron high flow filter cartridge delivers reliable filtration efficiency, high dirt-holding capacity, and long service life for demanding industrial applications.
As a cost-effective HF60PP001A01 equivalent filter, the MK-H60PP001S fits seamlessly into existing 3M High Flow filter housings without modification. It is widely used in industrial water treatment, RO pretreatment, seawater desalination, process water filtration, and power plant water systems, helping reduce replacement costs while maintaining consistent filtration performance.
1. Core Specifications
| Parameter | Value |
| Brand | MemKway |
| MemKway Model | MK-H60PP001S |
| Equivalent 3M Model | HF60PP001A01 |
| Filtration Rating | 1 μm (Absolute) |
| Cartridge Length | 60 inches (1524mm) |
| Outer Diameter (OD) | 6.5 inches (165 mm) |
| Internal Diameter (ID) | 3 inches (76.2 mm) |
| Flow Direction | Outside to inside |
2. Compatible 3M High Flow Filter Models
| Original 3M Model | MemKway Replacement |
| HF60PP001A01 | MK-H60PP001S |
| HF60PP005A01 | MK-H60PP005S |
| HF60PP010A01 | MK-H60PP010S |
| HF60PP020A01 | MK-H60PP020S |
| HF60PP040A01 | MK-H60PP040S |
| HF60PP070A01 | MK-H60PP070S |
3. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | Silicone Standard /Nitrile, EPDM and Viton Optional |
4. Operating Conditions
Parameter | Maximum / Recommended Value |
MaximumOperating Temperature | 71°C (160°F) |
Maximum Forward Differential Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Recommended Change-out Differential Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Maximum Water Flow Rate | 113 m³/h (500 GPM) per element |
5. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Removal rating (μm) | Element pressure drop (mbar/m³/h ) | Element pressure drop (psi/100 gpm) | ||
40″ | 60″ | 40″ | 60″ | |
1 | 2.47 | 1.73 | 0.80 | 0.56 |
2 | 2.29 | 1.60 | 0.74 | 0.52 |
5 | 1.23 | 0.86 | 0.40 | 0.28 |
10 | 0.62 | 0.43 | 0.20 | 0.14 |
15 | 0.44 | 0.31 | 0.14 | 0.10 |
25 | 0.31 | 0.23 | 0.11 | 0.08 |
40 | 0.30 | 0.22 | 0.10 | 0.07 |
70 | 0.29 | 0.21 | 0.09 | 0.06 |
6. Key Features & Benefits
– Direct Replacement for HF60PP001A01
Designed as a direct 3M HF60PP001A01 replacement filter cartridge, ensuring seamless installation in existing 3M High Flow filter housings.
– High Dirt-Holding Capacity
The compound radial pleat design provides excellent dirt-loading capacity, stable filtration performance, and extended service life.
– Cost-Effective Filtration Solution
This HF60PP001A01 replacement filter cartridge delivers reliable filtration performance while helping reduce replacement and operating costs.
– Easy Installation & Maintenance
The integrated handle design enables quick cartridge replacement, minimizing maintenance time and system downtime.
– Versatile Industrial Applications
Available in micron ratings from 1 μm to 70 μm, making it suitable for RO pretreatment, desalination, industrial water treatment, process water filtration, and power plant applications.
7. Typical Applications
– Reverse Osmosis (RO) Pretreatment
Widely used as an RO pretreatment filter cartridge, the HF60PP001A01 replacement filter helps protect RO membranes, reduce fouling, and improve overall system efficiency.
– Seawater Desalination & SWRO Systems
This desalination filter cartridge is ideal for seawater reverse osmosis (SWRO) plants and intake water filtration systems, providing reliable particulate removal for high-flow applications.
– Municipal & Industrial Water Treatment
The 3M HF60PP001A01 replacement filter is suitable for industrial water treatment, municipal water plants, and process water filtration systems where high flow rates and consistent filtration performance are required.
– Oil & Gas Industry
Used for produced water treatment, amine loop filtration, glycol filtration, and other demanding oil and gas filtration applications requiring robust chemical compatibility.
– Chemical & Petrochemical Processing
Applicable to acids, alkalis, process fluids, and other industrial liquids, making it a dependable industrial filter cartridge for chemical and petrochemical facilities.
– Power Plants & Industrial Utilities
Commonly used in power plant water treatment, boiler condensate filtration, cooling water systems, and utility water processes to ensure reliable equipment protection.
– Mining & Process Water Filtration
Suitable for mining water treatment, wastewater recycling, and industrial process water filtration where high dirt-loading capacity and long service life are essential.
8. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
9. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality equivalent filters. Any reference to original part numbers (HF60PP001A01) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
Q1: What is MemKway MK-H60PP001S?
A: MemKway MK-H60PP001S is a high-performance HF60PP001A01 compatible filter cartridge designed as a direct 3M HF60PP001A01 replacement filter cartridge.
A: Yes. Manufactured according to strict OEM specifications, this HF60PP001A01 replacement filter cartridge matches the original model in dimensions, filtration efficiency, flow performance, and service life, providing reliable filtration for demanding industrial filtration applications.
A: This high flow filter cartridge is commonly used in RO pretreatment systems, seawater desalination plants, municipal water treatment, power plant water filtration, process water filtration, and industrial water treatment applications requiring high flow rates and effective particle removal.
A: MemKway MK-H60PP001S offers the same OEM-compatible fit and reliable filtration performance as the original 3M HF60PP001A01 filter cartridge, while providing more competitive pricing, shorter lead times, and lower replacement costs. It is an ideal cost-effective alternative to 3M High Flow filters for industrial filtration projects.
