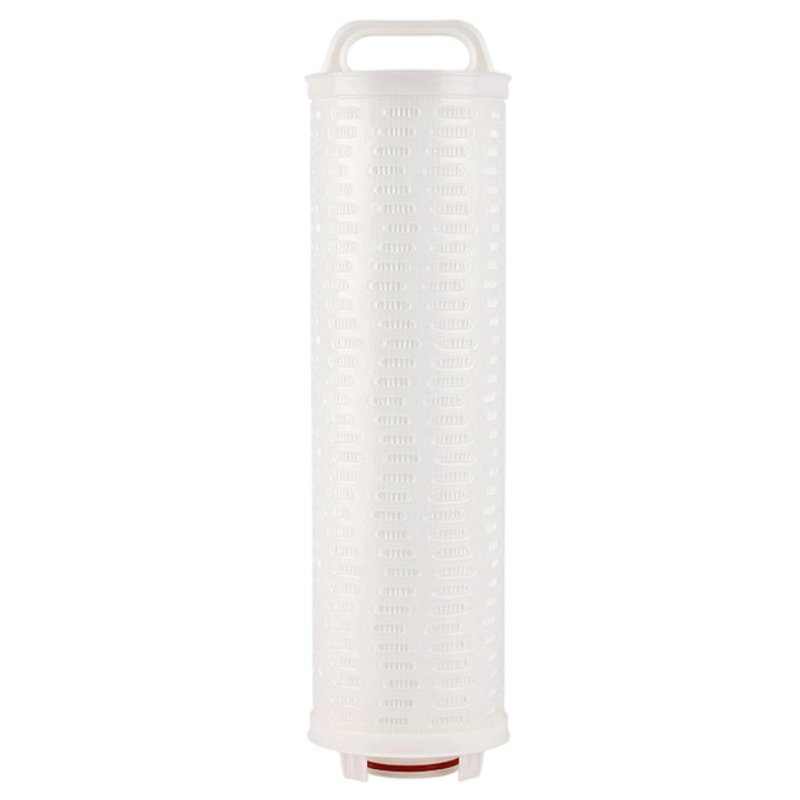

Reliable HF40PP010D01 Replacement Filter Cartridge | 3M Compatible High Flow Filter
The HF40PP010D01 Replacement Filter Cartridge from MemKway is designed as a reliable alternative to the original 3M High Flow Series filter for industrial liquid filtration. Featuring 10 micron polypropylene filter media, a 40-inch large-format design, and Buna-N O-rings, it provides effective particle removal, high dirt-holding capacity, low pressure drop, and dependable sealing performance.
This 3M compatible high flow filter cartridge is suitable for industrial process water, cooling water, RO pretreatment, power generation, chemical processing, and general water treatment. MemKway provides stable manufacturing quality, competitive factory pricing, OEM/private label support, and flexible global supply.
| Item | Details |
| MemKway Model | MK-H40PP010N |
| Equivalent to 3M Model | HF40PP010D01 |
| Compatibility | Fits 3M HF Series 40-inch High Flow Filter Housings |
1. Core Specifications
| Parameter | Value |
| Brand | MemKway |
| Filtration Rating | 10 μm (Absolute) |
| Cartridge Length | 40 inches (1016mm) |
| Outer Diameter (OD) | 6.5 inches (165 mm) |
| Internal Diameter (ID) | 3 inches (76.2 mm) |
| Flow Direction | Outside to inside |
2. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | Buna-N Standard /Silicone, EPDM and Viton Optional |
3. Operating Conditions
Parameter | Maximum / Recommended Value |
MaximumOperating Temperature | 71°C (160°F) |
Maximum Forward Differential Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Recommended Change-out Differential Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Maximum Water Flow Rate | 80 m³/h (350 GPM) per element |
4. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Removal rating (μm) | Element pressure drop (mbar/m³/h ) | Element pressure drop (psi/100 gpm) | ||
40″ | 60″ | 40″ | 60″ | |
1 | 2.47 | 1.73 | 0.80 | 0.56 |
2 | 2.29 | 1.60 | 0.74 | 0.52 |
5 | 1.23 | 0.86 | 0.40 | 0.28 |
10 | 0.62 | 0.43 | 0.20 | 0.14 |
15 | 0.44 | 0.31 | 0.14 | 0.10 |
25 | 0.31 | 0.23 | 0.11 | 0.08 |
40 | 0.30 | 0.22 | 0.10 | 0.07 |
70 | 0.29 | 0.21 | 0.09 | 0.06 |
5. Key Features & Benefits
- 1:1 Compatibility: Guaranteed to fit perfectly into existing high-flow filter housings without any modifications.
- Compound radial pleat design:The filter offers high loading capacity, reproducible effluent quality throughout its service life, and broad chemical compatibility.
- Cost-Efficient Excellence: The HF40PP010D01 replacement filter achieves the same (or better) filtration efficiency as the original ones while reducing your overall operational and maintenance costs.
- Simplified Maintenance: Featuring an integrated handle design, MemKway HF40PP010D01 replacement filters allow for rapid installation and mechanical removal, minimizing system downtime.
- Suitable for diverse industrial applications: Micron grades range from 1 μm to 70 μm absolute filtration precision. It offers excellent particulate removal and surface filtration for a variety of industrial applications..
6. Typical Applications
- Oil & Gas: Produced water, amine loops, glycol filtration.
- Water Treatment: Pre-filtration for Reverse Osmosis (RO), Desalination, Municipal Water.
- Chemical/Petrochemical: Acids, bases, and process water purification.
- Industrial: Boiler condensate, cooling water, and parts washing.
7. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
8. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality equivalent filters. Any reference to original part numbers (HF40PP010D01) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
Q1: What is MemKway MK-H40PP010N?
A:MemKway MK-H40PP010N is a direct fit 3M HF40PP010D01 replacement filter cartridge for industrial water treatment systems.
A: Manufactured in strict accordance with OEM criteria, this HF40PP010D01 replacement filter matches original 3M model perfectly in dimensional tolerance and filtration performance.
A: Widely applied in food & beverage, pharmaceutical, chemical, electronics and general industrial water treatment systems.
A: Choosing MemKway MK-H40PP010N brings the same OEM fit and filtration performance, with more competitive pricing, shorter lead time and lower long-term maintenance costs. It is a perfect cost-saving interchangeable option for industrial filtration projects.
