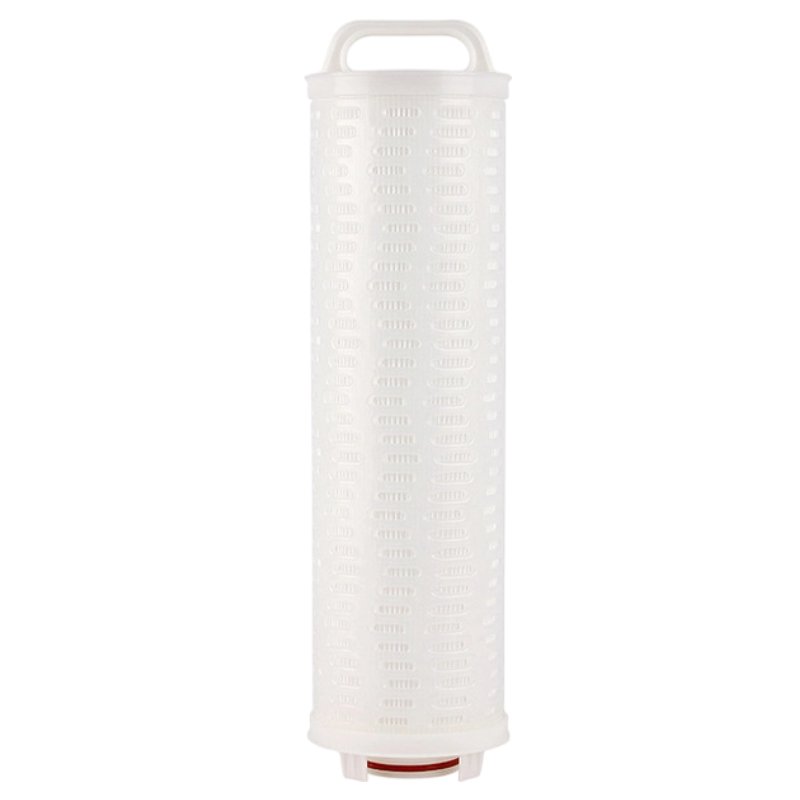

HF60PP005B01 Replacement Filter Cartridge – 5 μm Viton 3M High Flow Compatible
MemKway HF60PP005B01 replacement filter cartridge is designed as a compatible alternative for selected 3M High Flow filtration systems. It features 5 μm absolute pleated polypropylene media, a 60-inch large-format configuration and Viton O-rings for industrial liquid filtration.
Typical applications include process water, chemical processing, oil & gas and industrial water treatment. Final compatibility should be confirmed by OEM part number, dimensions, seal configuration and process fluid.
1. Core Specifications
| Parameter | Specification |
|---|---|
| Brand | MemKway |
| MemKway Model | MK-H60PP005V |
| OEM Reference | 3M HF60PP005B01 |
| Filtration Rating | 5 μm (Absolute) |
| Cartridge Length | 60 in (1524 mm) |
| Outer Diameter | 6.5 in (165 mm) |
| Inner Diameter | 3 in (76.2 mm) |
| O-ring Material | Viton |
| Flow Direction | Outside to Inside |
2. HF60PP005B01 Cross Reference & Related 3M High Flow Models
| 3M Model | MemKway Replacement | Rating | Seal | Length |
|---|---|---|---|---|
| HF40PP005B01 | MK-H40PP005V | 5 μm | Viton | 40 in |
| HF60PP005B01 | MK-H60PP005V | 5 μm | Viton | 60 in |
| HF60PP001A01 | MK-H60PP001S | 1 μm | Silicone | 60 in |
| HF40PP005A01 | MK-H40PP005S | 5 μm | Silicone | 40 in |
3. Materials of Construction
Component | Material |
Filter Media | Pleated Polypropylene (PP) |
Support Layer | Polypropylene |
End Caps | Polypropylene |
Inner/Outer Cage | High-Strength Polypropylene |
O-ring Material | Viton Standard /Nitrile, EPDM and Silicone Optional |
4. Operating Conditions
Parameter | Maximum / Recommended Value |
MaximumOperating Temperature | 71°C (160°F) |
Maximum Forward Differential Pressure | 3.4 bar @ 20°C (50 psid @ 68°F) |
Recommended Change-out Differential Pressure | 2.4 bar @ 20°C (35 psid @ 68°F) |
Maximum Water Flow Rate | 113 m³/h (500 GPM) per element |
5. Clean Pressure Drop vs. Flow Rate (Water @ 20°C)
Removal rating (μm) | Element pressure drop (mbar/m³/h ) | Element pressure drop (psi/100 gpm) | ||
40″ | 60″ | 40″ | 60″ | |
1 | 2.47 | 1.73 | 0.80 | 0.56 |
2 | 2.29 | 1.60 | 0.74 | 0.52 |
5 | 1.23 | 0.86 | 0.40 | 0.28 |
10 | 0.62 | 0.43 | 0.20 | 0.14 |
15 | 0.44 | 0.31 | 0.14 | 0.10 |
25 | 0.31 | 0.23 | 0.11 | 0.08 |
40 | 0.30 | 0.22 | 0.10 | 0.07 |
70 | 0.29 | 0.21 | 0.09 | 0.06 |
6. HF60PP005A01 vs HF60PP005B01 – What Is the Difference?
| Feature | HF60PP005A01 | HF60PP005B01 |
|---|---|---|
| Filtration Rating | 5 μm | 5 μm |
| Media | Polypropylene | Polypropylene |
| Length | 60 in | 60 in |
| Seal Configuration | Silicone | Viton |
| Typical Selection Basis | General water-service configuration | Applications requiring Viton seal compatibility |
7. Key Features & Benefits
- Compatible Installation: Designed for selected 3M High Flow filtration systems.
- 5 μm Absolute Filtration: Pleated polypropylene media for particulate removal.
- 60-Inch Large-Format Design: Suitable for high-flow industrial filtration duties.
- Viton Seal Configuration: Intended for applications requiring Viton elastomer compatibility.
- Cross-Reference Support: Model selection can be confirmed using OEM part number, dimensions and seal configuration.
8. Typical Applications
- Oil & Gas: Produced water, amine loops, glycol filtration.
- Water Treatment: Pre-filtration for Reverse Osmosis (RO), Desalination, Municipal Water.
- Chemical Processing: Selected compatible process fluids and process-water applications.
- Industrial: Boiler condensate, cooling water, and parts washing.
9. Quality & Regulatory Compliance
- Certification: Manufactured in an ISO 9001:2015 certified facility.
- Standards: CE marked for international safety and quality standards.
- Food Contact: Materials comply with FDA 21 CFR requirements for food & beverage contact.
10. Cross-Reference Disclaimer
3M, CUNO, and Solventum are registered trademarks of their respective owners. MemKway is an independent manufacturer of high-quality equivalent filters. Any reference to original part numbers (HF60PP005B01) is for comparison and compatibility information only.
Frequently Asked Questions (FAQ)
Q1: What is the filtration rating of HF60PP005B01 replacement filter?
A: The HF60PP005B01 replacement filter configuration uses 5 μm absolute pleated polypropylene media for particulate removal in industrial liquid filtration applications.
A: Viton is typically selected where the process fluid or operating conditions require greater chemical resistance than standard water-service elastomers. Final selection should be confirmed against the actual fluid chemistry and temperature.
A: Yes. It is designed as a compatible replacement for selected 3M High Flow applications. Final fit should be confirmed using the complete OEM part number, dimensions and seal configuration.
